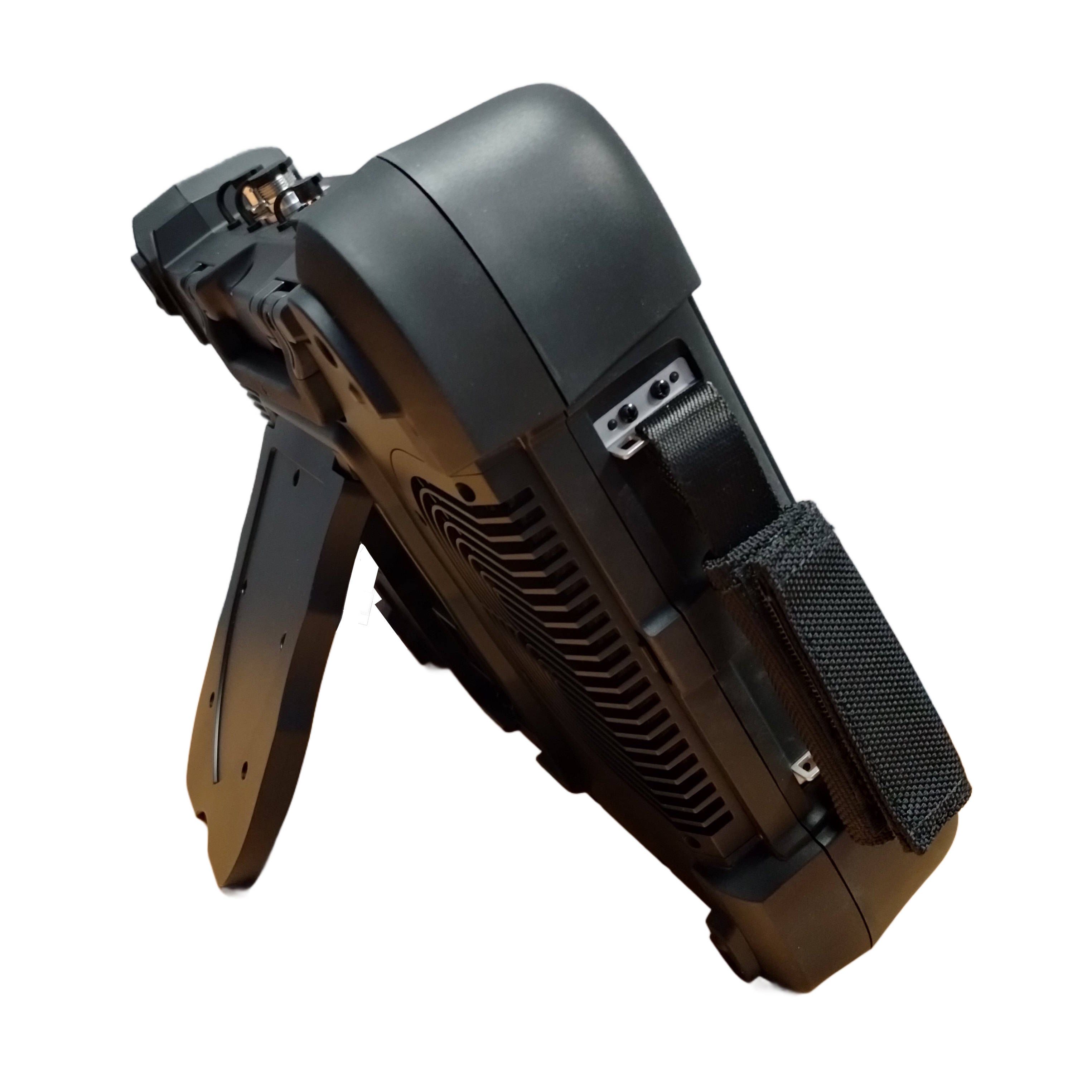

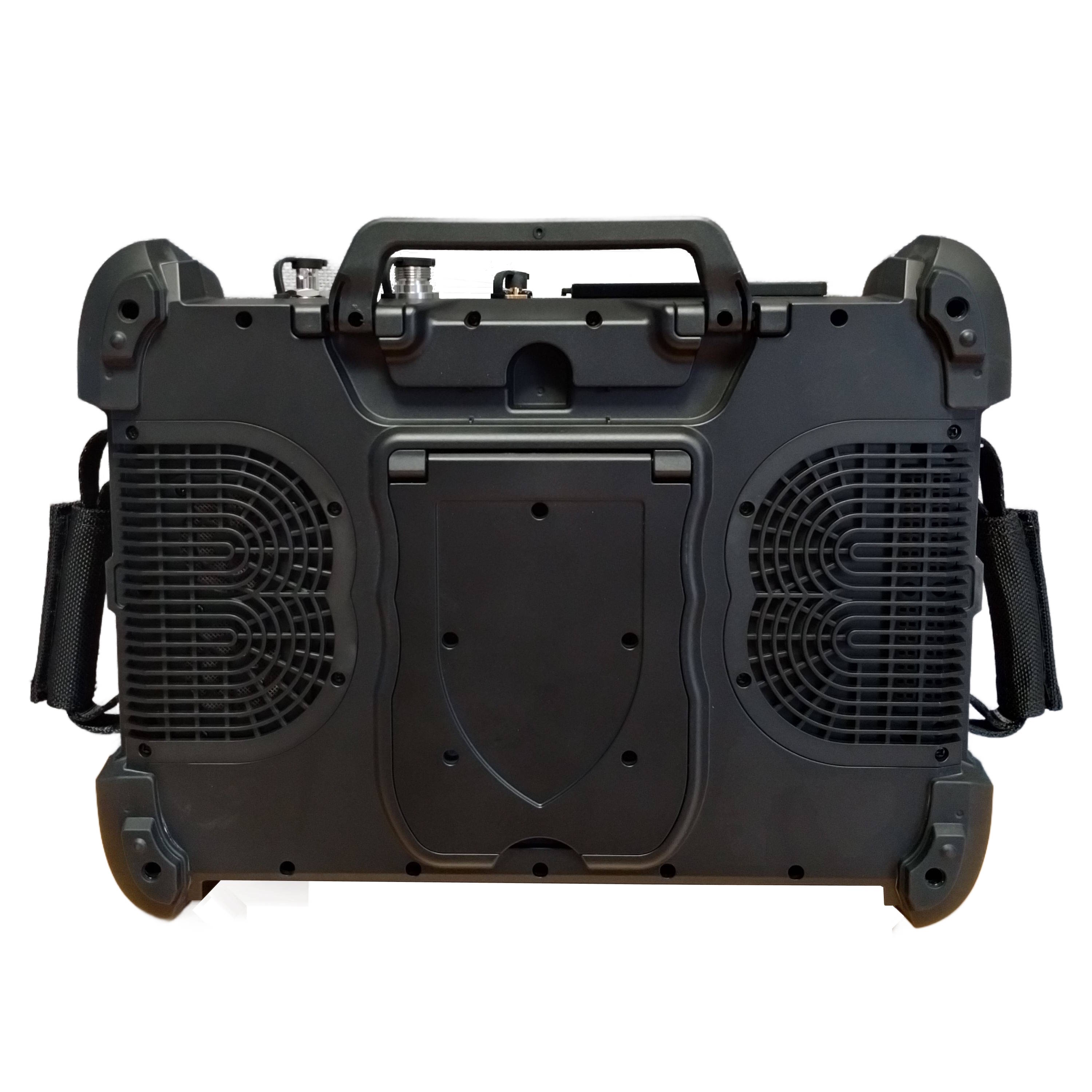

WSA 408 Wireless Signal Analyzer



The WSA 408 is Sage Instruments’ newest wireless test instrument. Here are just a few of the notable product attributes:

 ▪  Unparalleled Interference Hunting Capability
 ▪  100 MHz Real-Time Bandwidth
 ▪  Ease of use with Intuitive Touchscreen UI
 ▪  Incredible Dynamic Range in Hot RF Environments
 ▪  Small & Light - 8.5 lbs (3.9 kg) w/ 3 Hr Battery Life

Features / Options

Incredible Spectrum Analyzer
- Coverage 450 MHz to 6 GHz (Opt:10)
Extended Range 8 KHz to 8 GHz (Opt:30)
- 50/100 MHz Analysis Bandwidth (Opt:40/50)
- 100% POI @ 100 usec (free-running)
- Real-Time Capture w/100% POI @ 1 usec
- Minimum Detectable Signal 10 nsec
- Unparalleled Out-of-Band rejection performance providing industry leading dynamic range in hot environments

Interference Analyzer (Opt:120)
- Synchronized Preamp Sensitivity Preamp (Opt:65)
- Spectrogram & Spectral Density Displays (Opt:60)
- Signal Source Locator with Triangulation (Opt:120)
- Proprietary Noise Floor Relational Trigger (Opt:85)
- Multi-Channel Spectrum Recorder (Opt:90)

Wideband Sweeping (Opt: 100)
- > 200 GHz/sec Sweep Speed

5G Signal Analyzer
- SSB Decoder & Scanner
- PBCH BER & MIB Decode
- NB-IoT Decoder & Scanner (Opt:225)

Legacy Signal Analyzers
- 4G LTE FDD/TDD (Opt: 210/215)
- 3G+ WCDMA (Opt: 220)
- 2G/GSM/EDGE (Opt: 230)

Blind Scanner (Opt:300)
- AutoScans for available carriers

Channel Scanner/Recorder
- ITU, FCC & Custom Lists

Coverage Testing
- Drive Test w/ Mapping (Opt: 305)
- Indoor Walk Test w/ Floorplan (Opt: 310)

Power Meter & ACP
- Field Strength & Power Density (Opt: 125)
